WOOD LINEPlus Light

Vitreous enamelled pipes for wood stove

https://www.savefumisteria.it/wp-content/uploads/2023/07/save-linea-plus-nero-opaco.png

These pipes are lighter and less expensive than the Plus 1.2mm line, while maintaining all the characteristics and performance standards. They are fully compatible from both the technical point of view – thanks to the same connections and dimensions – and the aesthetical point of view, thanks to the same enamel coating. These pipes can be fitted with Plus 1.2 mm line elbows and tees or Classic line elbows.

Representing the highest level of SAVE Spa quality, laser-welding ensures these carbon steel pipes perfect welding. Subsequent internal/external vitreous enamel coating baked to 850°C provides exceptional resistance against corrosion by combustion condensate.
V2 test results specified by corrosion resistance Standard 1856-2 show that Plus 1.2 mm and Plus Light flue pipes have a significantly longer duration than normally painted 2 mm thick pipes that have not received internal vitreous enamel coating.
They are perfectly resistant even to extreme situations such as soot-fire (a fire that occurs inside the pipe) without being damaged or modified.

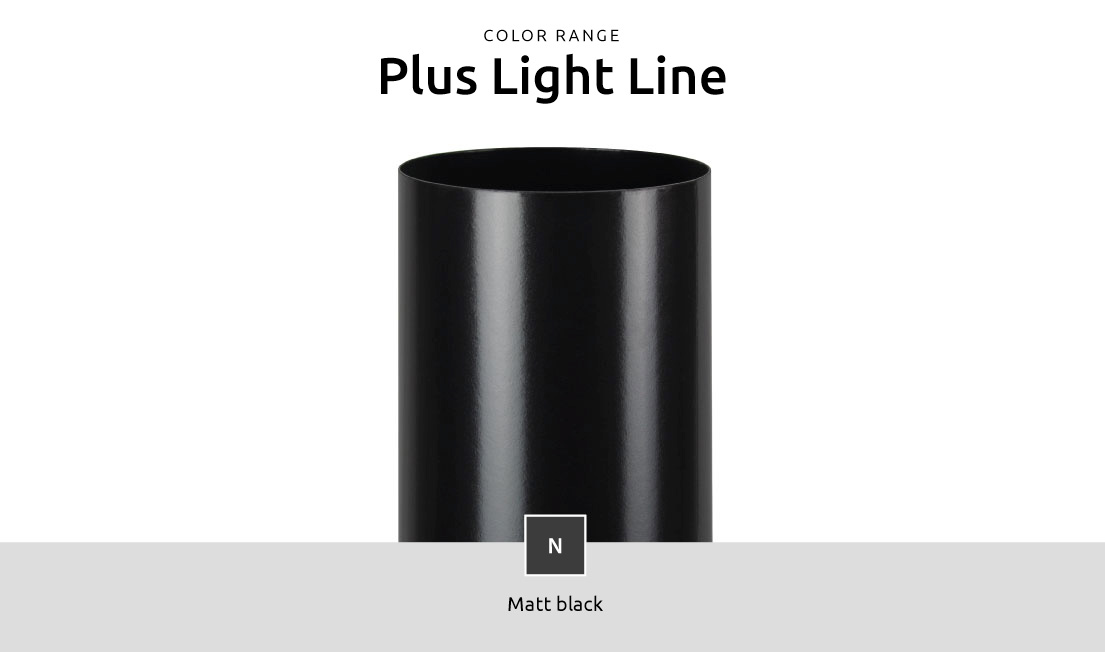

Color range

Nero opaco

  Matt black

Thickness

LINEAR PIPES

1000mm, 500mm, 250mm, telescopic pipes
https://www.savefumisteria.it/wp-content/uploads/2023/05/spessore-07.png

total thikness
steel 0.5mm + vitreous coating 0.2mm

FITTING PIPES

90° elbow, 45° elbow, “T” pipes, fittings...
https://www.savefumisteria.it/wp-content/uploads/2023/05/spessore-12.png

total thikness
steel 1mm + vitreous coating 0.2mm

Anti-condensate mode

https://www.savefumisteria.it/wp-content/uploads/2023/11/EN-save-anti-condensate-fitting-scheme.png

In order to prevent the leakage of condensate, they must be fitted with the inlet facing downwards (see drawing). To do this, it may be necessary to use an F/F anti-condensate fitting to start with.

Pipes

https://www.savefumisteria.it/wp-content/uploads/2023/07/modello-plus2.png

Plus Light L1000mm pipe

https://www.savefumisteria.it/wp-content/uploads/2023/07/modello-plus2.png

Plus Light L500mm pipe

https://www.savefumisteria.it/wp-content/uploads/2023/07/modello-plus2.png

Plus Light L250mm pipe

https://www.savefumisteria.it/wp-content/uploads/2023/07/tubo-telescopico-plus.png

Plus Light telescopic set H500mm

https://www.savefumisteria.it/wp-content/uploads/2023/07/tubo-telescopico-plus.png

Plus Light telescopic set H330mm

Elbows

https://www.savefumisteria.it/wp-content/uploads/2023/07/gomito-90-plus.jpg

Plus 90° elbow

https://www.savefumisteria.it/wp-content/uploads/2023/12/gomito-45-plus.jpg

Plus 45° elbow

https://www.savefumisteria.it/wp-content/uploads/2023/07/gomito-30-plus.jpg

Plus 30° elbow

https://www.savefumisteria.it/wp-content/uploads/2023/07/gomito-15-plus.jpg

Plus 15° elbow

https://www.savefumisteria.it/wp-content/uploads/2023/07/gomito-90-ispezione-plus.jpg

Plus 90° elbow with inspection door

https://www.savefumisteria.it/wp-content/uploads/2023/07/gomito-45-ispezione-plus.jpg

Plus 45° elbow with inspection door

T-pieces

https://www.savefumisteria.it/wp-content/uploads/2023/07/t-ff-plus.jpg

Plus F/F T-piece

https://www.savefumisteria.it/wp-content/uploads/2023/07/t-mf-plus.jpg

Plus M/F T-piece

Plugs

https://www.savefumisteria.it/wp-content/uploads/2023/07/tappo-cieco-t-plus.jpg

Plus blind plug for T-piece

Fittings

https://www.savefumisteria.it/wp-content/uploads/2023/07/raccordo-ff-plus.jpg

Plus F/F fitting

https://www.savefumisteria.it/wp-content/uploads/2023/07/raccordo-mm-plus.jpg

Plus M/M fitting

Special pipes

https://www.savefumisteria.it/wp-content/uploads/2023/07/2-tubo-serranda-plus.jpg

Plus pipe with flue damper H250mm

https://www.savefumisteria.it/wp-content/uploads/2023/07/tubo-controllo-fumi-h250mm-plus.jpg

Plus pipe with flue test point H250mm
